Color Coating Line

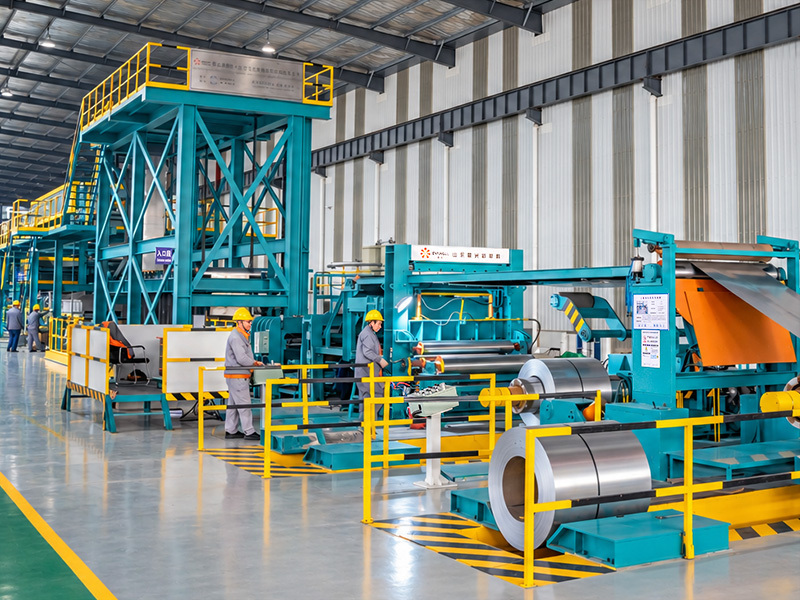

Color Coating Line | Continuous Metal Coil Prepainted Production Line
The color coating line is a complete set of continuous production equipment. It performs degreasing, cleaning and chemical pretreatment on metal strips, then applies multi-layer organic coatings (PE, SMP, HDP, PVDF) by roller coating to form new functional composite sheets.Optional extra functions: leveling, tension leveling, printing, hot film laminating, embossing.The finished color-coated sheets feature excellent corrosion resistance & decorative performance, widely used in construction, automobile, home appliance industry.
Technical Parameters
| Item | Color Coating Line for Steel | Color Coating Line for Aluminum |
| Strip width | max 1650mm | max 2680mm |
| Strip thickness | max 2.0mm | max 3.5mm |
| Line speed | max 240m/min | max 150m/min |
| Available Functions | Straightening, tension leveling, printing, hot film laminating, embossing | Straightening, tension leveling, printing, hot film laminating, embossing |
All Color Coating Line Products
As a professional color coating line manufacturer and supplier, we supply various customized coating lines: steel sheet printing line, aluminum sheet printing line and home appliance coil color coating line. Stable coating & printing performance for different metal substrates. Contact us to explore more technical details.
VCM film faced plywood (Polyvinyl-Coated Metal Steel) means to coat composite PVC thin film on the metal surface and make them combine firmly, and it is also called PVC film-faced plywood or PET/PVC filmed color galvanized steel plate. The base material can use metal thin plates of cold-rolled steel plate, hot-dip galvanized steel plate，electro-galvanized steel plate, aluminum plate, stainless steel plate, and Ti-Zn plate etc..
The printing production line of colored aluminum sheet is a complete of production equipment for colored aluminum sheet, and the process is as follows: make the aluminum coil strips be subject to surface degreasing treatment, then apply multi-layer organic coatings (e.g., nano-coating, self-cleaning coating, scratch-resistant coating, fingerprint-resistant coating etc.) on the strip surface by means of continuous roller coating, next, overprint multi-color patterns, and finally bake and cure to form composite material. The production line is composed of equipment of uncoiler, sewing machine, storage machine, degreasing and washing unit, roller-coating machine, printing machine, curing furnace, shear, coiler etc..
The steel sheet color coating production line is a complete of production equipment for colored steel sheet, and the process is as follows: make the steel coil strips be subject to surface degreasing, parkerising and passivating treatment, then apply multi-layer organic coatings (e.g., coatings of modified resin (SMP), high weather-resistant polyester (HDP), polyvinylidene fluoride (PVDF) etc.) on the strip surface by means of continuous roller coating, next, overprint multi-color patterns, and finally compound to form new functional plates. The production line is composed of equipment of uncoiler, sewing machine, tension machine, storage machine, degreasing and washing unit, roller-coating machine, printing machine, curing furnace, shear, coiler etc..
Our Service
We deliver complete turnkey solutions for metal coating and printing lines. Our full service package covers project evaluation, layout design, equipment fabrication, and factory pre-testing. As a professional color coating line manufacturer and supplier, we offer overseas installation, commissioning, operator training, coating formula guidance and lasting after-sales support with spare parts supply.
✓ Project feasibility analysis, customized workshop layout and line engineering design
✓ Equipment fabrication, factory pre-assembly, dry run and full performance test before shipment
✓ Overseas on site installation, commissioning and hands on operator training
✓ Professional formula guidance for paint, coating and protective film materials
✓ Long term after sales technical support and reliable spare parts supply
Talk To Us About Your Exclusive Color Coating Line Project
As a professional color coating line manufacturer and supplier, we have delivered multiple global turnkey projects. We provide customized lines for steel printing, aluminum printing and home appliance coating. We will tailor proper solutions to match your production targets. Feel free to send your inquiry now.
Color Coating Line Application
As a professional color coating line manufacturer and supplier, our coated & printed metal sheets serve wide range of industries, including building roof/wall panels, home appliance shells, auto parts, packaging and furniture panels. Tell us your target application, we offer matching production line solutions.
Construction
Roof panel, wall cladding, interior decorative panel, insulated board, fence.
Home Appliance
Refrigerator, washing machine, air conditioner shell (VCM/PCM sheet)
Others
Automotive component, packaging sheet, furniture panel.
FAQ About Jingxiang Color Coating Line Manufacturer
A: Our lines can process steel coils, aluminum coils and galvanized coils for printing and color coating.
A: Line speed is customizable, normally ranges from 5 to 30 meters per minute based on your product requirements.
A: Yes. We offer full turnkey service covering design, manufacturing, overseas installation, commissioning and operator training.
A: They produce panels for construction, home appliance shells, furniture boards, packaging sheets and automotive components.
A: Normally 4–8 months, depending on the line configuration and customized functions.
A: Yes. We design the whole production line based on your workshop dimension, target capacity and finished product types.
