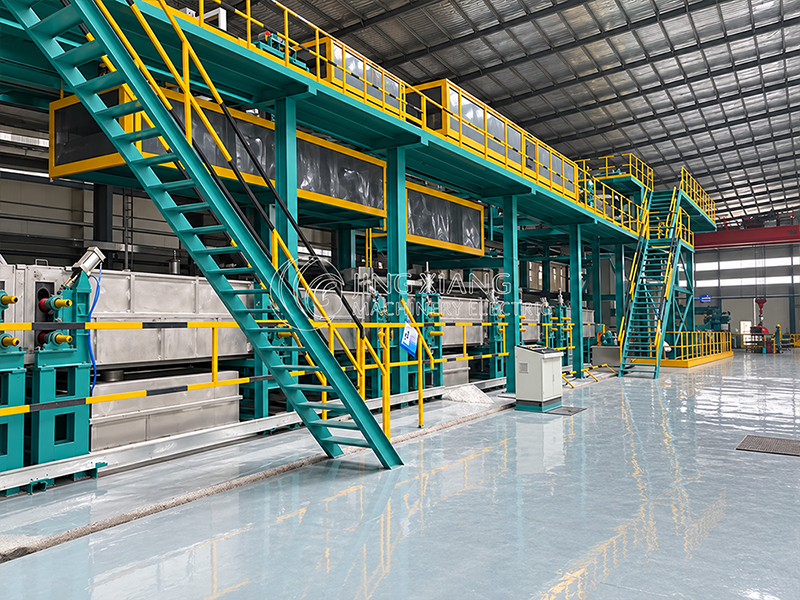

Printing Production Line Of Colored Aluminum Sheet 1

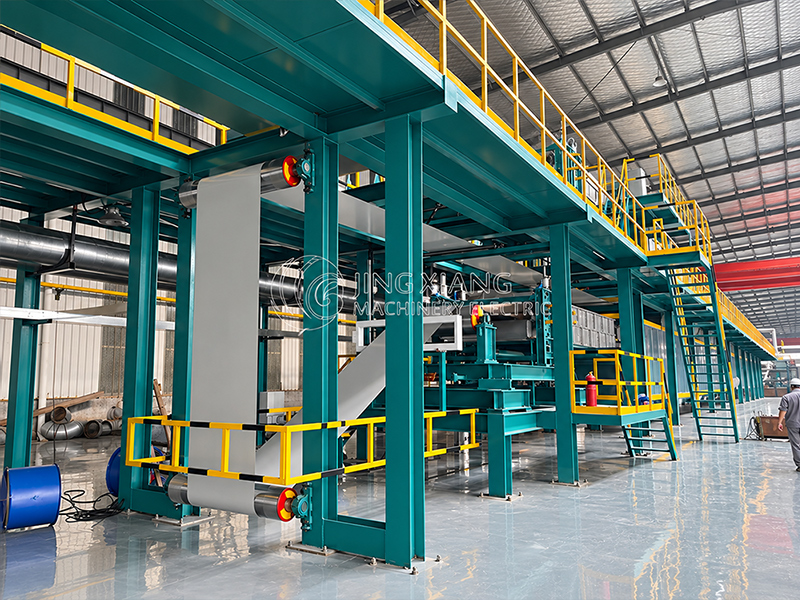

Printing Production Line Of Colored Aluminum Sheet 2

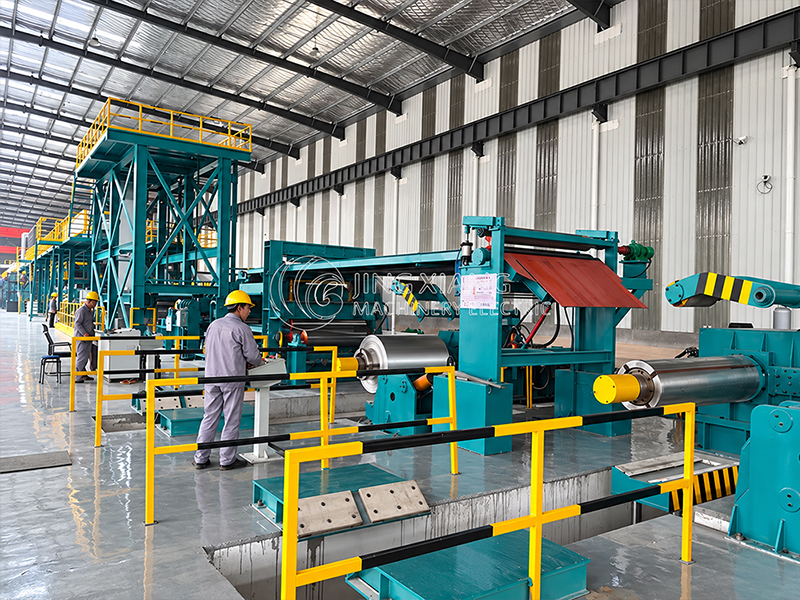

Printing Production Line Of Colored Aluminum Sheet 3

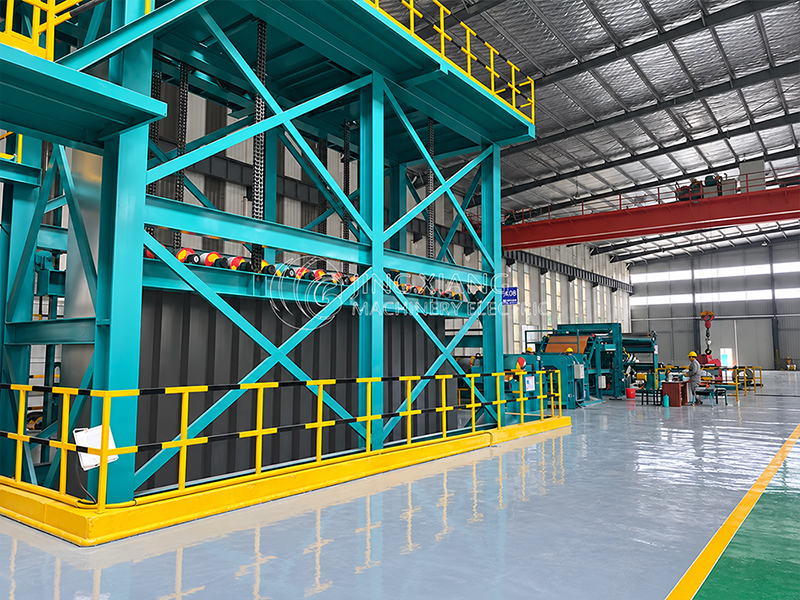

Printing Production Line Of Colored Aluminum Sheet 4

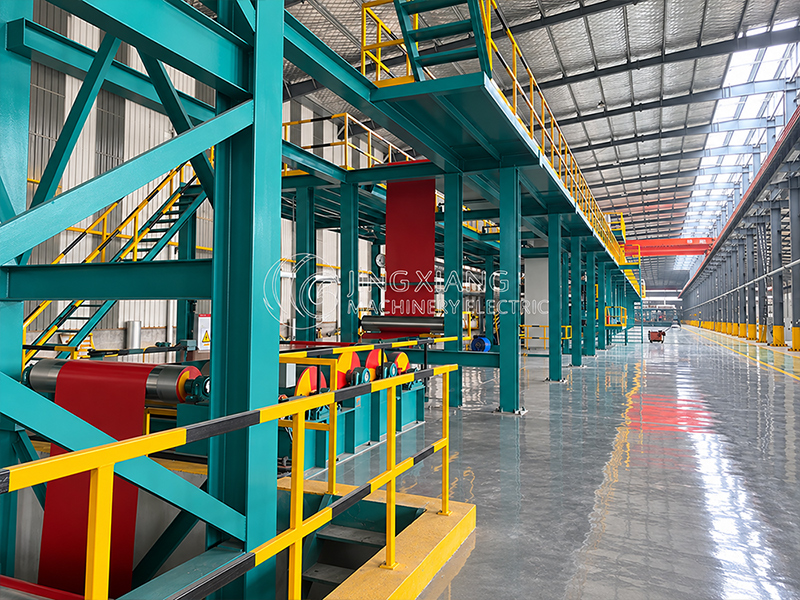

Printing Production Line Of Colored Aluminum Sheet 5

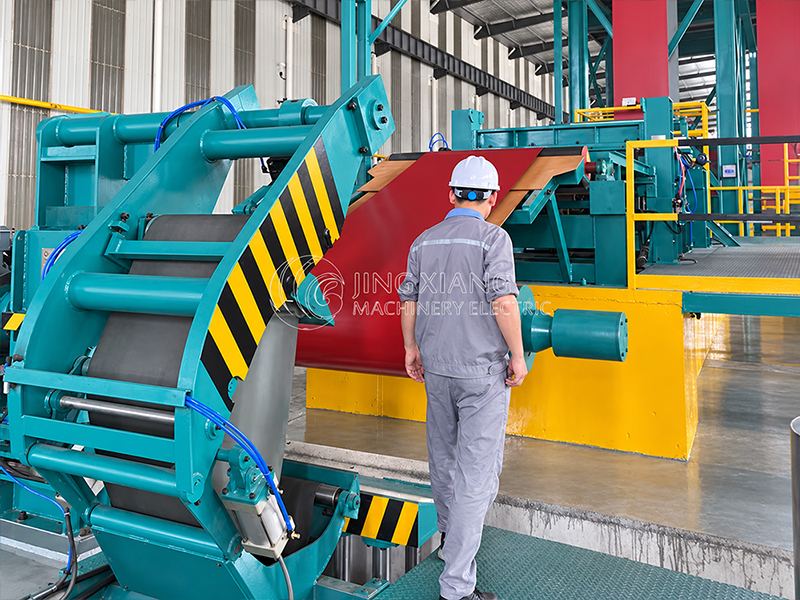

Printing Production Line Of Colored Aluminum Sheet 6
Printing Production Line Of Colored Aluminum Sheet 1
Printing Production Line Of Colored Aluminum Sheet 2
Printing Production Line Of Colored Aluminum Sheet 3
Printing Production Line Of Colored Aluminum Sheet 4
Printing Production Line Of Colored Aluminum Sheet 5
Printing Production Line Of Colored Aluminum Sheet 6

Printing Production Line Of Colored Aluminum Sheet

The printing production line of colored aluminum sheet is a complete of production equipment for colored aluminum sheet, and the process is as follows: make the aluminum coil strips be subject to surface degreasing treatment, then apply multi-layer organic coatings (e.g., nano-coating, self-cleaning coating, scratch-resistant coating, fingerprint-resistant coating etc.) on the strip surface by means of continuous roller coating, next, overprint multi-color patterns, and finally bake and cure to form composite material. The production line is composed of equipment of uncoiler, sewing machine, storage machine, degreasing and washing unit, roller-coating machine, printing machine, curing furnace, shear, coiler etc..
5.0
design customization
Inquiry

    oops...!

    no product data.

    Go to homepage
    Write a Review

    Product Specifications

    Material of base plateHot aluminum plate,aluminum alloy plate
    Thickness of strip0. 2-3mm
    Width of strip800~1800mm
    Outer diameter of aluminum coil800-2000mm
    Process speed20-120m/min
    Thickness of coatingMax40um
    Thickness of printing layer≤1um(oil ink or polyester)
    Production capacity20.,000-60.,000 t/year
    0 (19)

    Technical Parameter

    Printing Production Line Of Colored Aluminum Sheet 8Line Type: one coating and one baking, two coating and two baking, three coating and three baking.

    Printing Production Line Of Colored Aluminum Sheet 9 Coating Type: epoxy resin, polyurethane, polyester, polypropylene, polyvinyl fluoride, silicon modified polyester

    Printing Production Line Of Colored Aluminum Sheet 10 Chemical Coater: dual-head two-roll type (used in prime coating), three-roll type (used in finish coating front side), two-roll type (used in finish coating back side).

    Printing Production Line Of Colored Aluminum Sheet 11 Catalytic Incineration System: RCO, RTO, DTO

    Printing Production Line Of Colored Aluminum Sheet 12 We also provide Pattern Printing System to produce pattern color coated steel, like the wood grain, brick grain, stone grain, marble grain and so on.

    9 (4)
    9 (4)

    Packing & Delivery

    • Export standard wooden cases packed in suitable container • Cooperate with reliable shipping company to ensure the delivery time  • Customized Packing is allowed.
