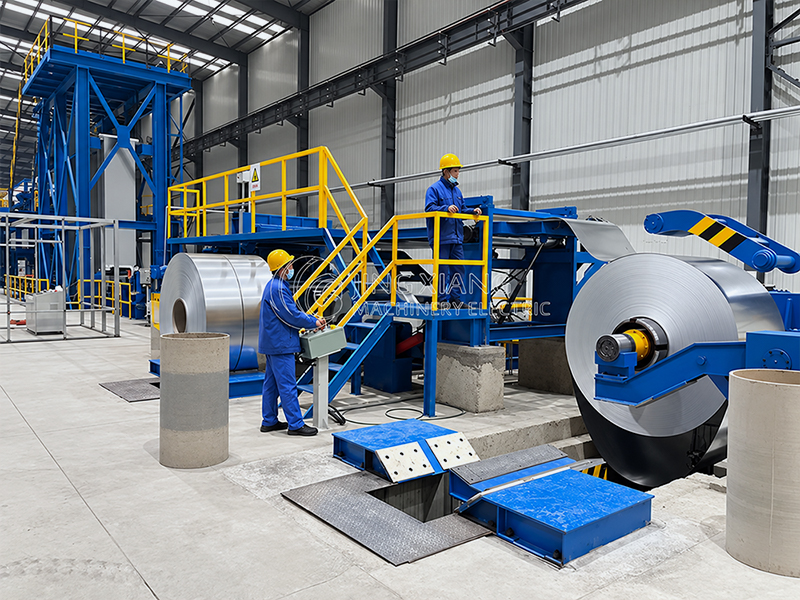

Steel Sheet Color Coating Production Line 1

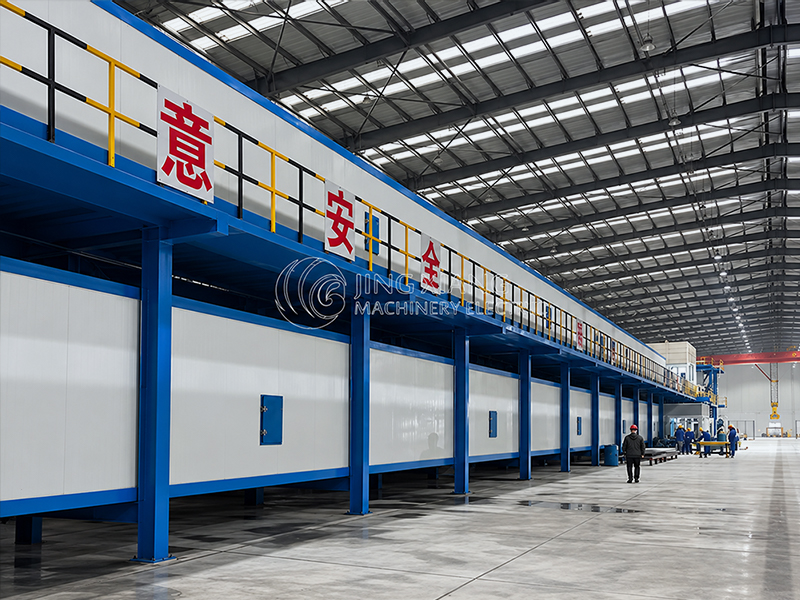

Steel Sheet Color Coating Production Line 2

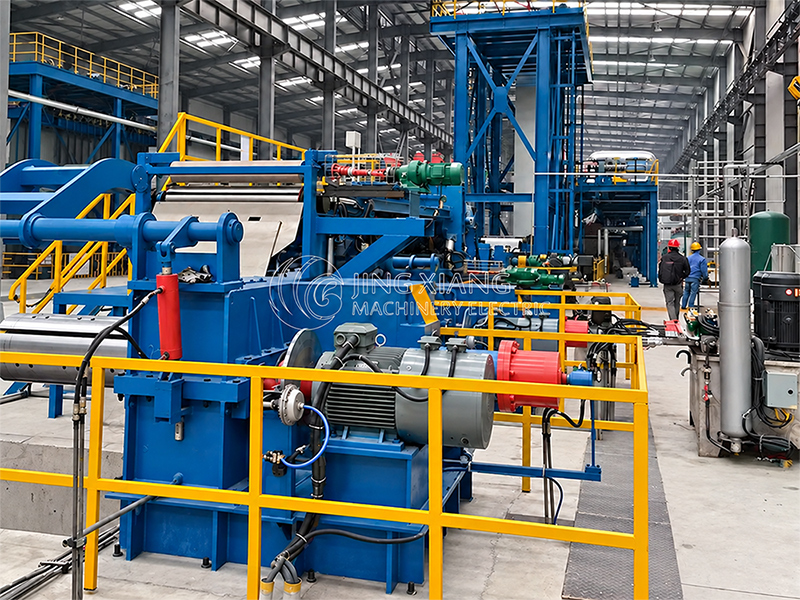

Steel Sheet Color Coating Production Line 3

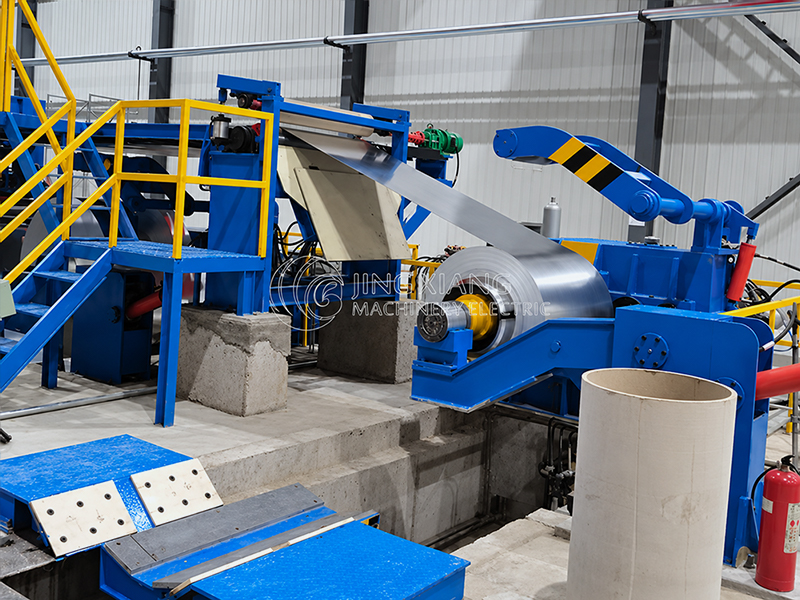

Steel Sheet Color Coating Production Line 4

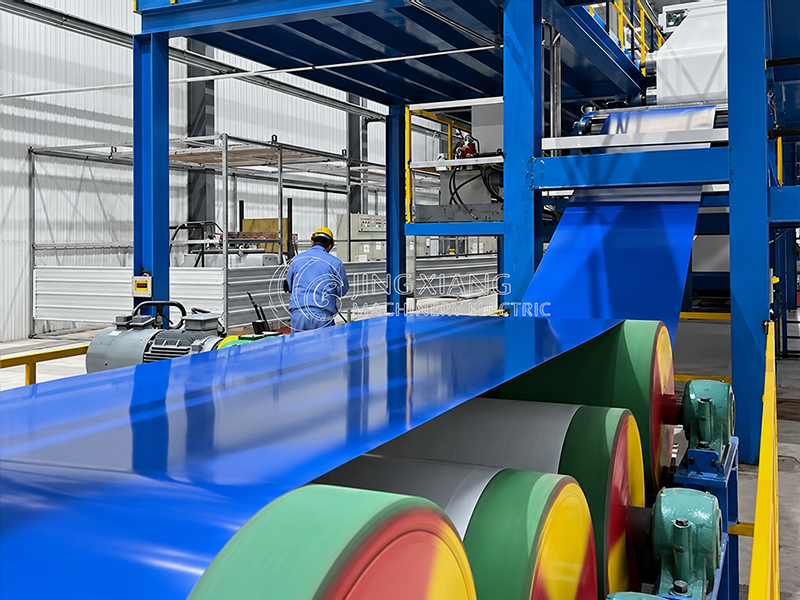

Steel Sheet Color Coating Production Line 5

Steel Sheet Color Coating Production Line

The steel sheet color coating production line is a complete of production equipment for colored steel sheet, and the process is as follows: make the steel coil strips be subject to surface degreasing, parkerising and passivating treatment, then apply multi-layer organic coatings (e.g., coatings of modified resin (SMP), high weather-resistant polyester (HDP), polyvinylidene fluoride (PVDF) etc.) on the strip surface by means of continuous roller coating, next, overprint multi-color patterns, and finally compound to form new functional plates. The production line is composed of equipment of uncoiler, sewing machine, tension machine, storage machine, degreasing and washing unit, roller-coating machine, printing machine, curing furnace, shear, coiler etc..

Inquiry

Write a Review

Product Specifications

Material of base plate	Electro-galvanized plate, hot-dip galvanized plate, hot dip Al-Zn plate, cold-rolled steel plate etc.
Width of strip steel	600-1650mm
Thickness of strip steel	0. 12-2.0mm
Outer diameter of steel coil	Φ 800-2000mm
Process speed	25-180m/min
Thickness of coating	5-25um for the single-layer dry film on the front face (regulated as required)
Thickness of coating	5-15um for the single-layer dry film on the back face (regulated as required)
Thickness of printing layer	≤1um (oil ink or polyester)
Production capacity	50, 000-200, 000 t/year
Energy type	Electricity, natural gas, liquefied petroleum gas, coal gas, steam, compressed air etc.

Technical Parameter

Line Type: one coating and one baking, two coating and two baking, three coating and three baking.

Coating Type: epoxy resin, polyurethane, polyester, polypropylene, polyvinyl fluoride, silicon modified polyester

Chemical Coater: dual-head two-roll type (used in prime coating), three-roll type (used in finish coating front side), two-roll type (used in finish coating back side).

Catalytic Incineration System: RCO, RTO, DTO

We also provide Pattern Printing System to produce pattern color coated steel, like the wood grain, brick grain, stone grain, marble grain and so on.

9 (4)

Packing & Delivery

• Export standard wooden cases packed in suitable container • Cooperate with reliable shipping company to ensure the delivery time • Customized Packing is allowed.
