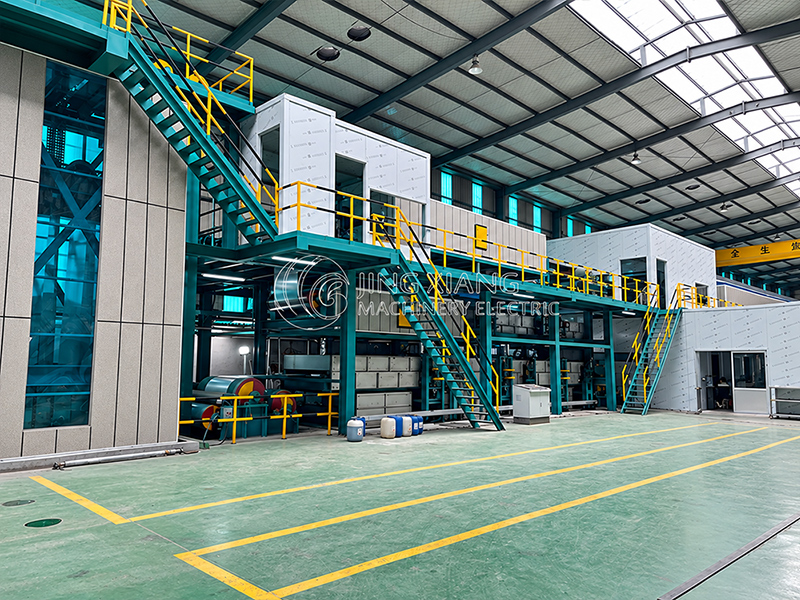

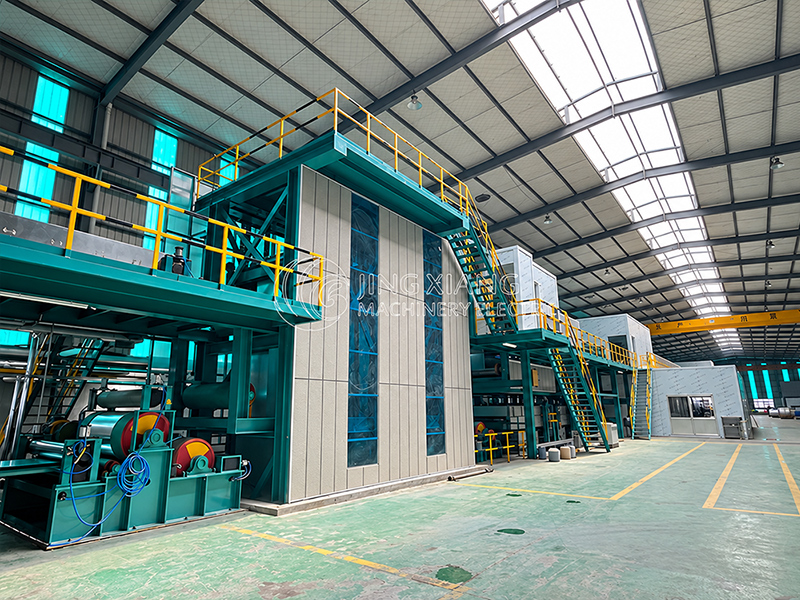

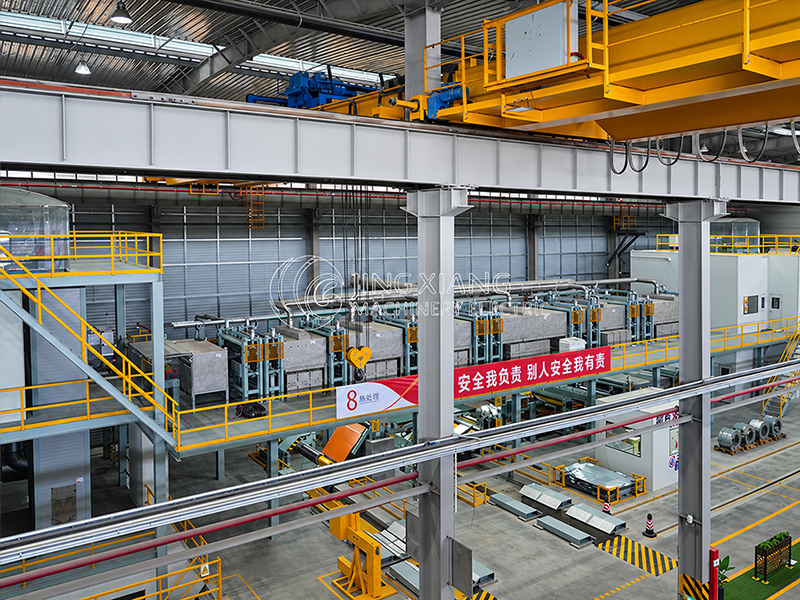

VCM Household Appliance Sheet Color Coating Production Line
VCM film faced plywood (Polyvinyl-Coated Metal Steel) means to coat composite PVC thin film on the metal surface and make them combine firmly, and it is also called PVC film-faced plywood or PET/PVC filmed color galvanized steel plate. The base material can use metal thin plates of cold-rolled steel plate, hot-dip galvanized steel plate，electro-galvanized steel plate, aluminum plate, stainless steel plate, and Ti-Zn plate etc.. VCM has beautiful appearance and excellent processability, surface decorativeness，corrosion resistance and scratch resistance, and can realize different effects from low light to high light, and meanwhile, it is fitted with beautiful patterns and jewelry twinkling effect.
Besides, on the basis that the surface film of film faced plywood has features of special processing of printing etc. , VCM can show different effects of multiple colors and touch textures. At present, it has been widely applied to household products of refrigerators and washing machines etc. .
Technical Features
| Material of base plate | Cold-rolled steel plate, hot-dip galvanized steel plate，electro-galvanized steel plate, aluminum plate, stainless steel plate, and Ti-Zn plate etc.. |
| Width of strip steel | 800-1400mm |
| Thickness of strip steel | 0. 2-1.2mm |
| Outer diameter of steel coil | Φ800-2000mm |
| Inner diameter of steel coil | Φ508-610mm |
| Process speed | When applying film or PCM coating,the maximum design speed is 60m/min;when printing,the maximum design speed is 40m/min. |

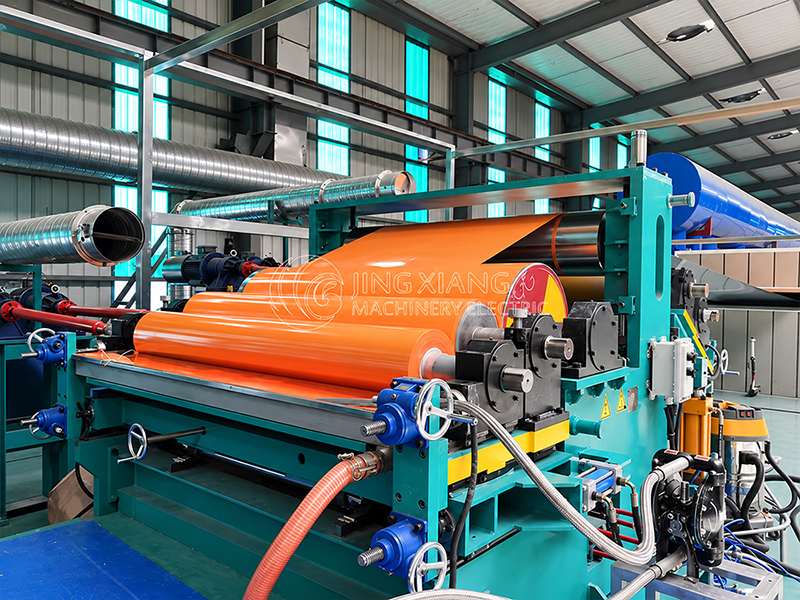

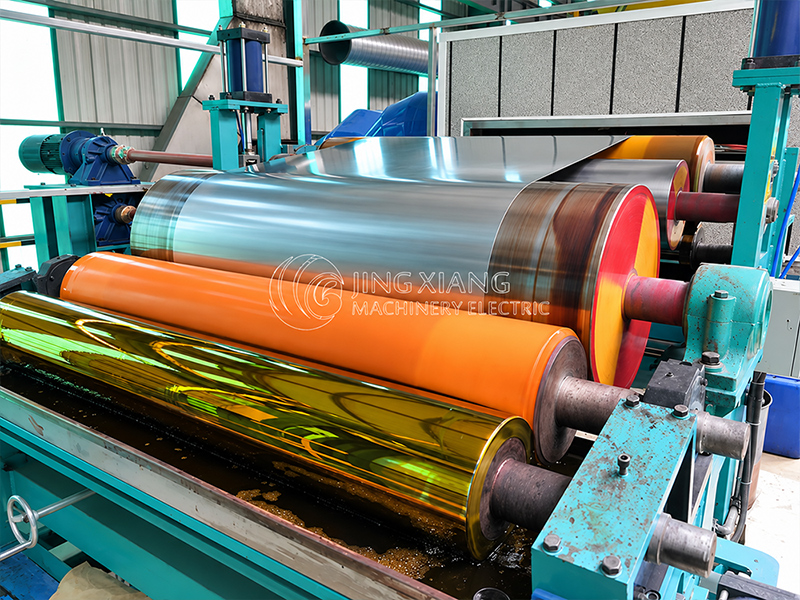

| Roller coating process and products | The front face is applied with PVC film, PET film or PCM coating,and the front face of the over-coating is printed in three colors continuously. |
| Production capacity | 30, 000-80, 000 ton/year |
| Types of fuels | Natural gas,electricity,liquefied petroleum gas,coal and coal gas |
| Degreasing form | Two-stage chemical degreasing+three-stage water rinsing+pure water spraying |
| Energy-saving mode | Waste-gas incineration,waste heat recovery and utilization,energy consumption reduction |
Technical Parameter
Packing & Delivery
• Export standard wooden cases packed in suitable container • Cooperate with reliable shipping company to ensure the delivery time • Customized Packing is allowed.
