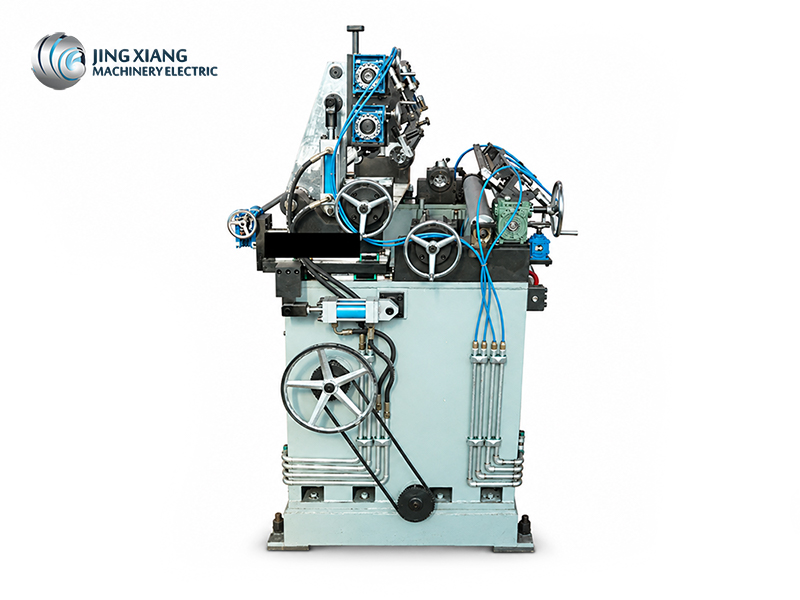

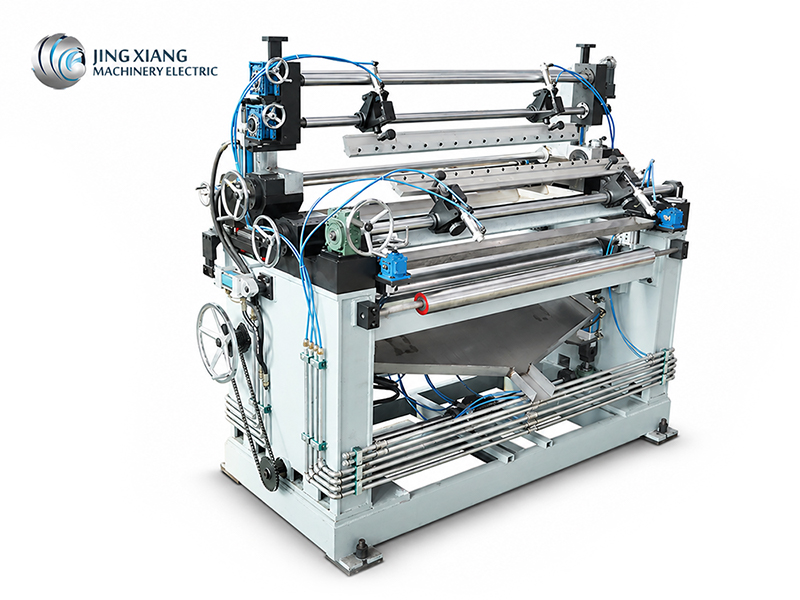

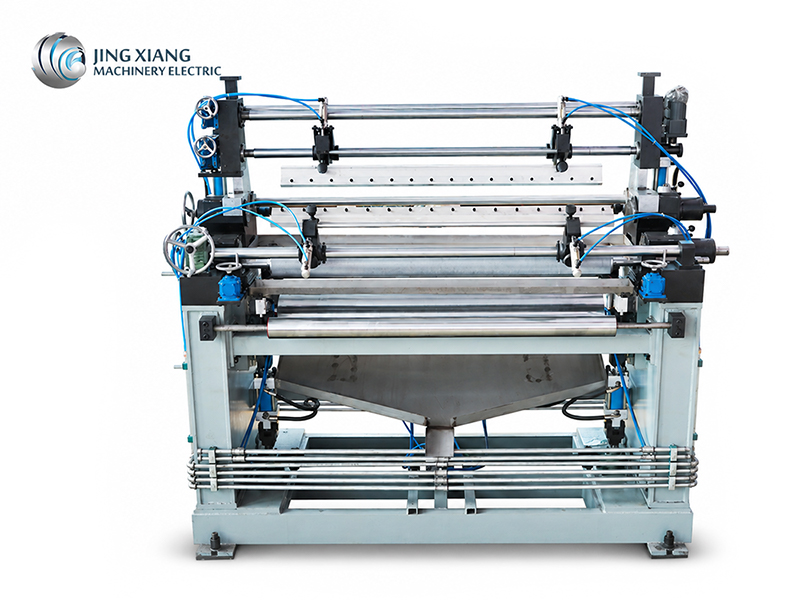

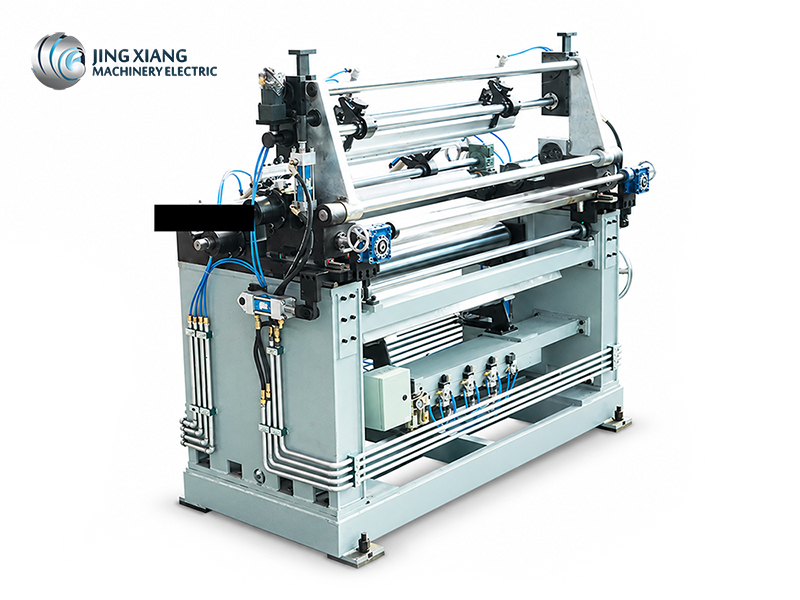

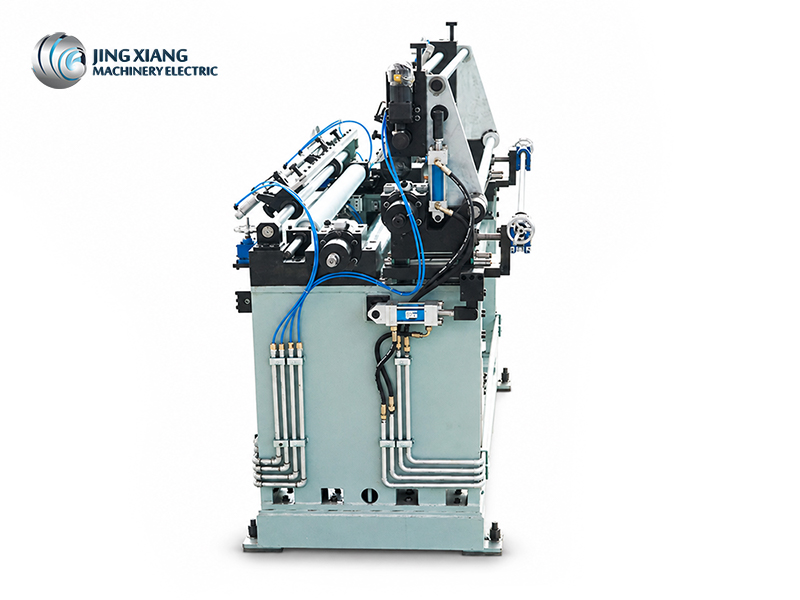

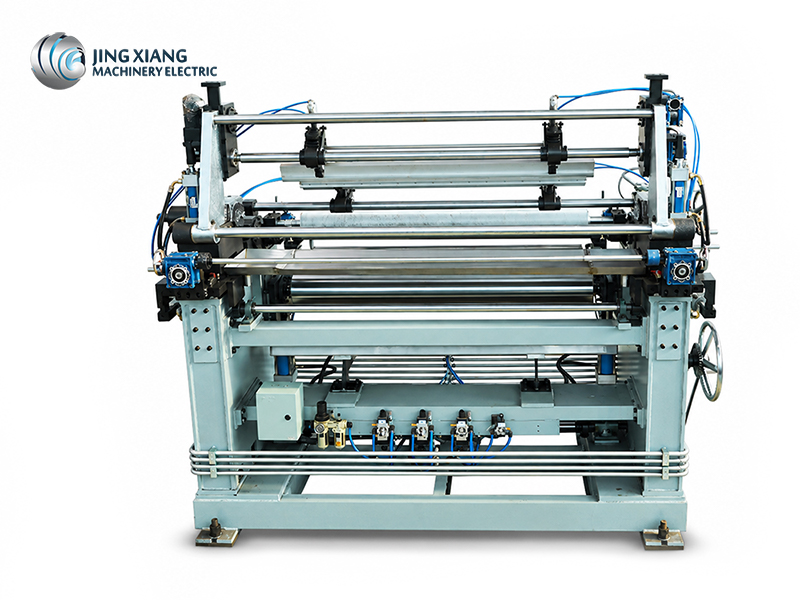

1‑3 Colors Printing Unit for Pre‑coated Metal Steel Strip
The complete equipment is an equipment performing printing of 1-3 colors or multiple colors on the surface of pre-coated layer the steel strip.The designed speed of such complete equipment is Max 60 m/min for single color printing (Max 40 m/min for double -color and three-color printing), the designed annual production is about 80, 000 tons, and the planned annual operational time is 6, 000 hours.
5.0
MOQ:
1set
Port:
Qingdao, China
Payment Terms:
T/T, L/C, Western Union
Packaging:
Stand packaging available
Delivery Time:
Within six months after payment confirmation
Shipping:
FCL/LCL by sea, air freight; Express delivery for samples
Certifications:
CE/ISO9001
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Advantages
Flexible Multi color Printing Capacity
This printing unit supports 1‑3 colors or multi color patterns on pre‑coated metal strip. It runs at max 60m/min for single color printing and 40m/min for dual or three color printing, meeting diversified decorative pattern demands for color coating production lines.
Wide Compatibility for Multiple Metal Strips
It is compatible with hot dip galvanized strip, electro galvanized strip and aluminum strip. It works steadily for strips within 0.2‑1.5mm thickness and 800‑1250mm width under qualified mechanical property and flatness requirements.
Reliable Production Performance for Mass Production
Designed for large volume industrial production with annual capacity up to 80,000 tons under 6000 planned working hours. Stable operation reduces frequent shutdowns, improving overall production efficiency of the whole color coating line.
Product Performance
Thickness of steel strip
0. 2-1. 5mm
Width of steel strip
800-1250mm
Flatness of steel strip
＜5mm/1000mm
Wave of steel strip
Maximum amplitude within the length of 6m
Mechanical property
Yield strength <35kg/m㎡;and tensile strength <45kg/m㎡
Material varieties
Hot-dip galvanized steel strip, electro-galvanized steel strip and aluminum strip etc.
9 (4)
Product Application
As one of the professional hydraulic uncoiler manufacturers, Jingxiang's uncoiler is widely applied in the construction industry (steel structures, roofing and wall panels), home appliances (outer casing stamping), the automotive industry (auto parts stamping), steel service centers (slitting and cut to length), and photovoltaic bracket manufacturing.
• Construction Industry • Home Appliance Industry • Automotive Industry
• Steel Service Center • Photovoltaic Bracket
Colored coated roll
Building Materials
Home appliances
PPGI
