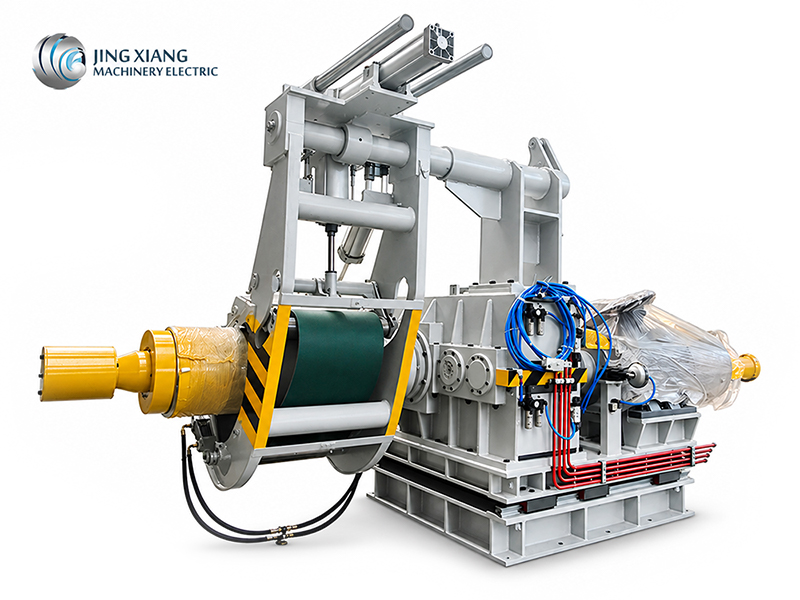

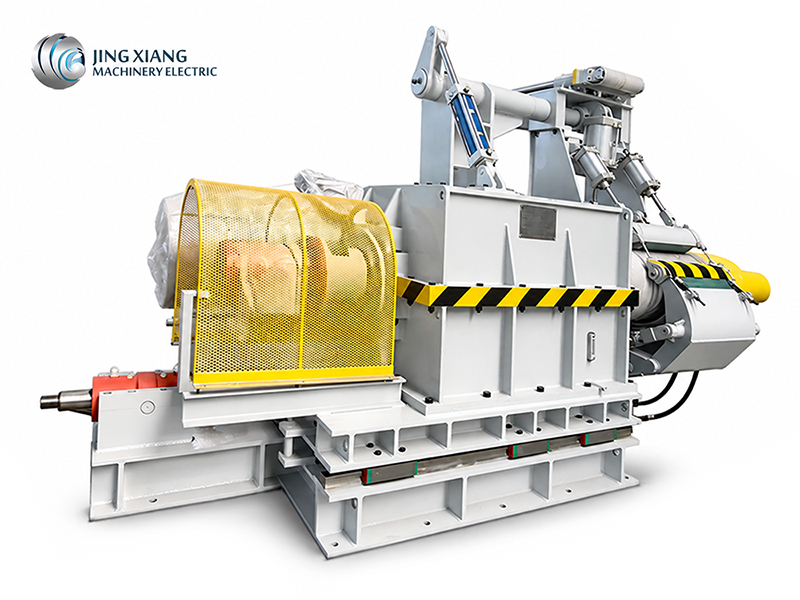

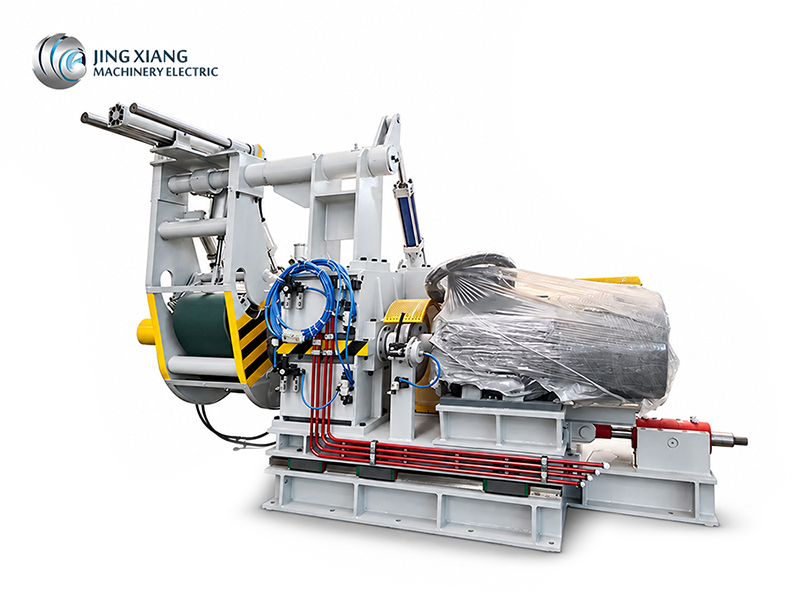

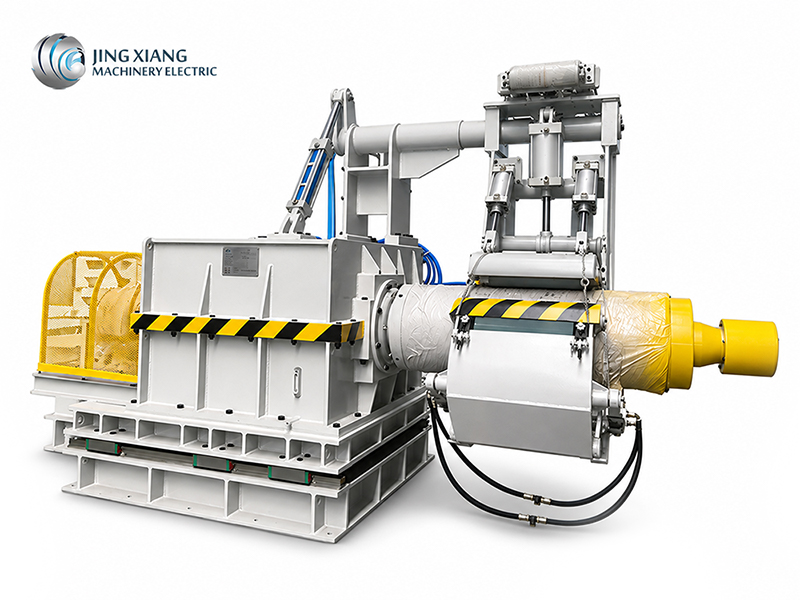

30 Ton Cantilever Recoiler machine, Color Coating Line Sheet Rewinding Machine
This heavy duty hydraulic Recoiler machine is mounted at the outlet of color coating lines. It rewinds color coated metal sheet into tight coils for convenient transportation. With max load capacity of 30 tons, it adopts cantilever pyramid seamless reel, hydraulic expansion & contraction and AC frequency conversion motor for stable rewinding performance.
5.0
MOQ:
1set
Port:
Qingdao, China
Payment Terms:
T/T, L/C, Western Union
Packaging:
Stand packaging available
Delivery Time:
Within six months after payment confirmation
Shipping:
FCL/LCL by sea, air freight; Express delivery for samples
Certifications:
CE/ISO9001
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
The Recoiler machine machine is installed at the exit end of the color coating production line. Its core function is to rewind continuous color-coated metal sheet into finished coils to facilitate storage and transportation.
The Recoiler machine machine consists of reel, rotary expansion and contraction cylinder, gear box, driving motor, brake and pedestal. It features cantilever pyramid seamless reel structure, hydraulic expansion and contraction, and AC frequency converted motor speed regulation for smooth and uniform coil winding.
Max load capacity reaches 30 tons. It adapts to coil inner diameter 508mm, max outer diameter 1500mm and sheet width 500–2850mm, widely used in continuous metal color coating processing.
9 (4)
Product Advantages
Heavy load & wide specification coverage
Max load capacity up to 30 tons. It handles sheet width 500–2850mm, coil inner diameter 508mm and outer diameter up to 1500mm. Suitable for different sizes of color coated metal sheet production.
Cantilever seamless reel & hydraulic expansion
Cantilever pyramid seamless reel structure with hydraulic expansion & contraction. It holds the strip tightly, ensures neat coil shape and convenient coil unloading after rewinding.
Stable AC variable frequency speed control
Equipped with AC frequency conversion motor drive and brake system. It provides smooth adjustable speed during continuous rewinding, reduces strip tension fluctuation and guarantees consistent coil quality.
9 (4)
Product Specifications
Load capacity
Max 30 tons
Coil inner diameter
508mm
Coil outer diameter
Max 1500mm
Sheet width
500–2850mm
Main drive
AC frequency conversion motor
FAQ About Our Recoiler machine Machine
1
Q: What is the maximum load capacity of this Recoiler machine?
A: The max load capacity is 30 tons. It supports coil inner diameter 508mm, max outer diameter 1500mm and sheet width from 500mm to 2850mm.
2
Q: What drive type does this Recoiler machine adopt?
A: It uses AC frequency conversion motor as main drive, matched with hydraulic expansion & contraction reel and brake system for stable tension control.
3
Q: What material can this Recoiler machine process?
A: It is specially designed for color-coated metal sheet, such as steel coil and aluminum coil, working at the outlet of color coating production line.
4
Q: Is the reel cantilever structure? What is the expansion range?
A: Yes, it adopts cantilever pyramid seamless reel. The expansion & contraction range is 486–505mm, easy for coil loading and unloading.
5
Q: Can you customize the Recoiler machine according to our production line requirements?
A: Yes. We can adjust parameters like working width and load capacity to match your whole color coating line.
