Hydraulic Strip Stitcher Jointing Machine for Metal Strip Surface Treatment Line

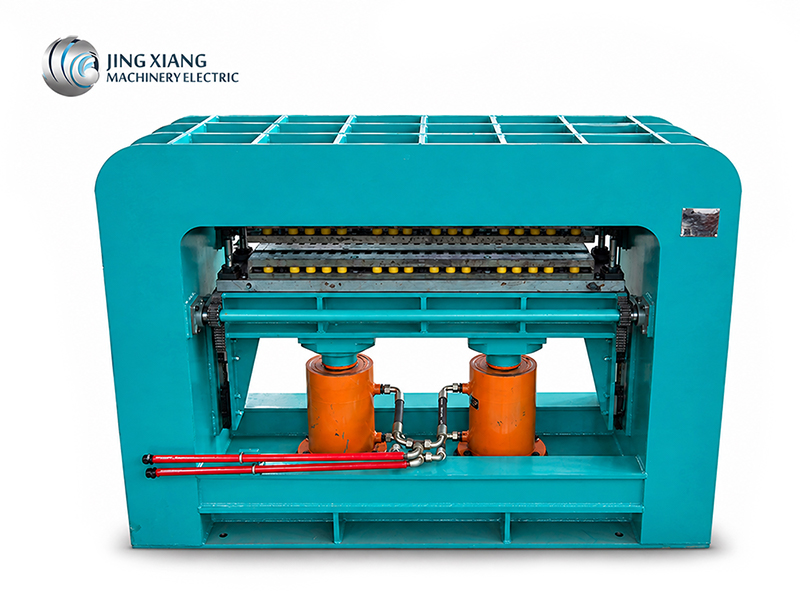

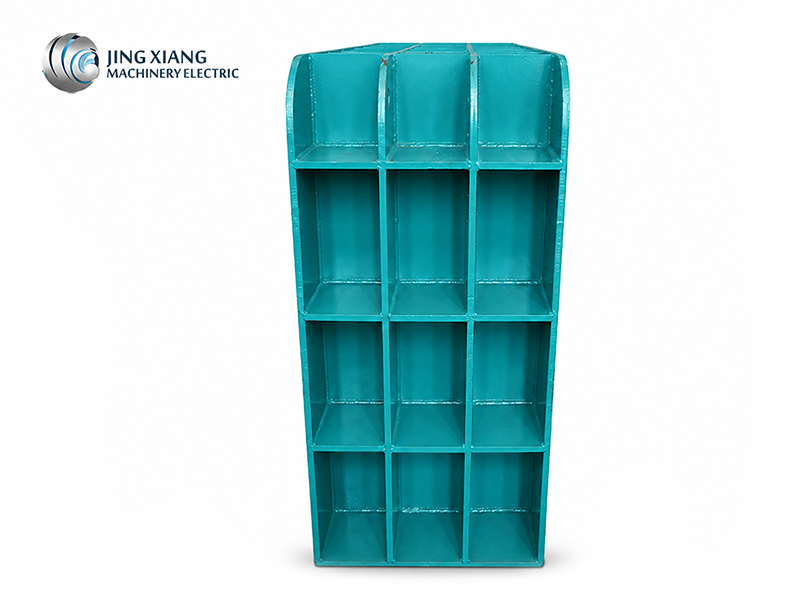

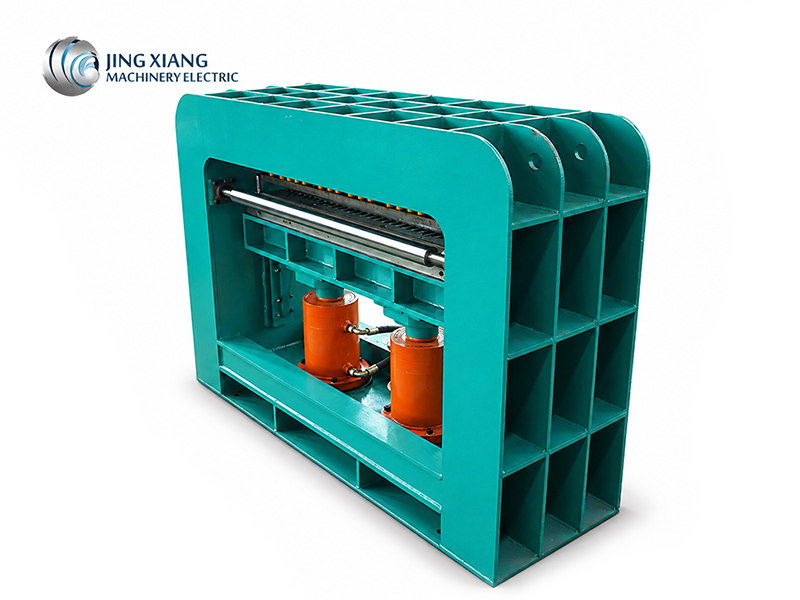

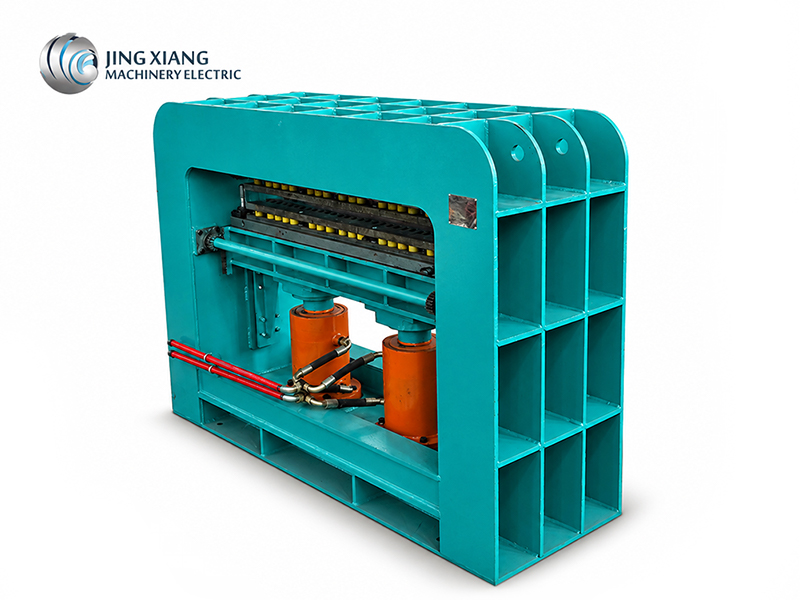

The machine is dedicated equipment applicable to the head-tail connection of plates and strips in the production line of coating and galvanizing of steel plate,copper plate,aluminum plate,galvanized plate and various plate strips, and is composed of steel-structure body,mold,synchronization system,guiding device and hydraulic system.It can directly lock and sew the strip tail of the coiled plate and the strip head of the next coil without stopping the machine during the operation of unit.
5.0
MOQ:
1set
Port:
Qingdao, China
Payment Terms:
T/T, L/C, Western Union
Packaging:
Stand packaging available
Delivery Time:
Within six months after payment confirmation
Shipping:
FCL/LCL by sea, air freight; Express delivery for samples
Certifications:
CE/ISO9001
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Advantages
Flexible Types & Easy Operation
It features simple operation, energy saving and time saving. Available in single-row and double-row stitching models, multiple specifications to fit different strip thickness and width.
Non-stop Strip Joining for Continuous Production
It locks and stitches the tail of the current coil strip with the head of the next coil without line shutdown while the production unit keeps running. Avoid production interruption and improve line efficiency.
Reliable Structure & Stable Stitching Performance
The machine adopts steel-structure body, matched with mold, synchronization system, guiding device and hydraulic system. It delivers firm sewing effect for steel, copper, aluminum and galvanized metal strips on coating and galvanizing lines.
Product Performance
Sewing time
≤10s
Working pressure
≤21Mpa
Number of sewing rows
1-2 rows
Material thickness
≤3. 0mm (aluminum plate≤6. 0mm)
Material width
≤1800mm (aluminum plate≤2100mm)
Applicable materials
Steel plate, copper plate, aluminum plate, galvanized plate and various plate strips.
9 (4)
Product Application
As one of the professional hydraulic uncoiler manufacturers, Jingxiang's uncoiler is widely applied in the construction industry (steel structures, roofing and wall panels), home appliances (outer casing stamping), the automotive industry (auto parts stamping), steel service centers (slitting and cut to length), and photovoltaic bracket manufacturing.
• Construction Industry • Home Appliance Industry • Automotive Industry
• Steel Service Center • Photovoltaic Bracket
Colored coated roll
Building Materials
Home appliances
PPGI
