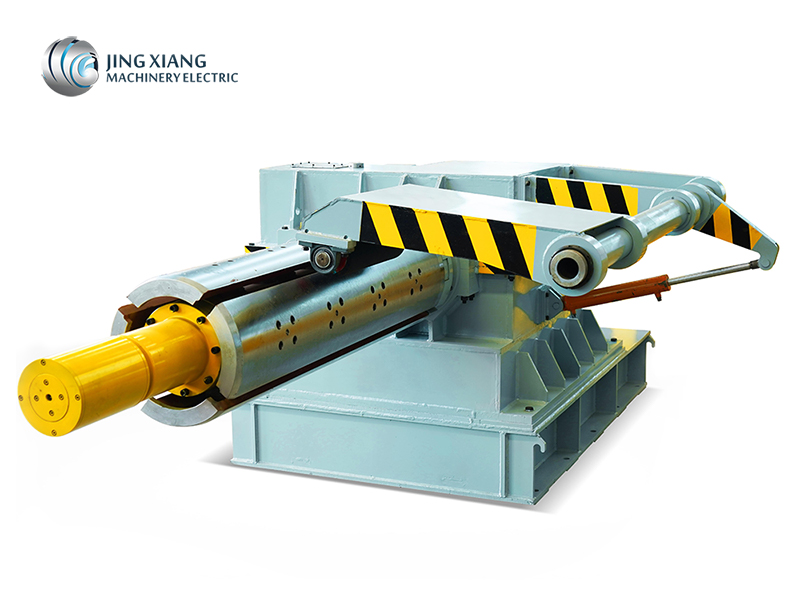

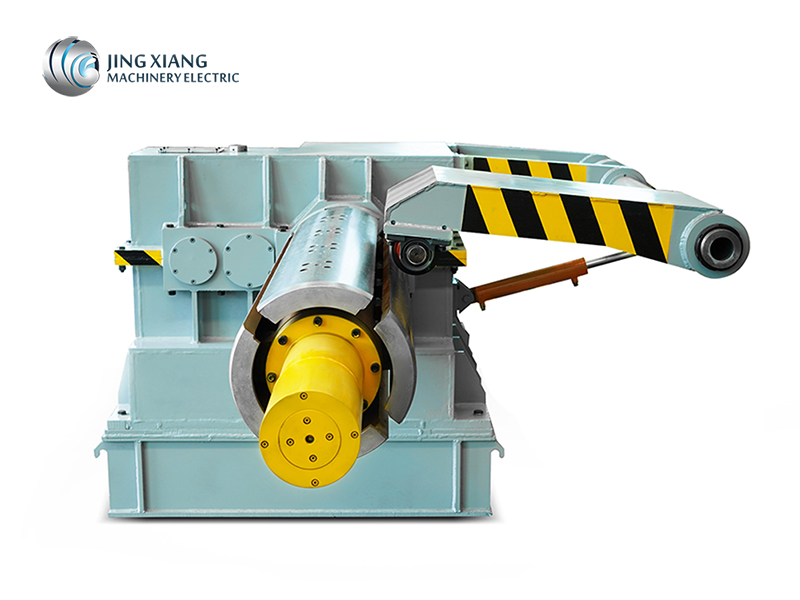

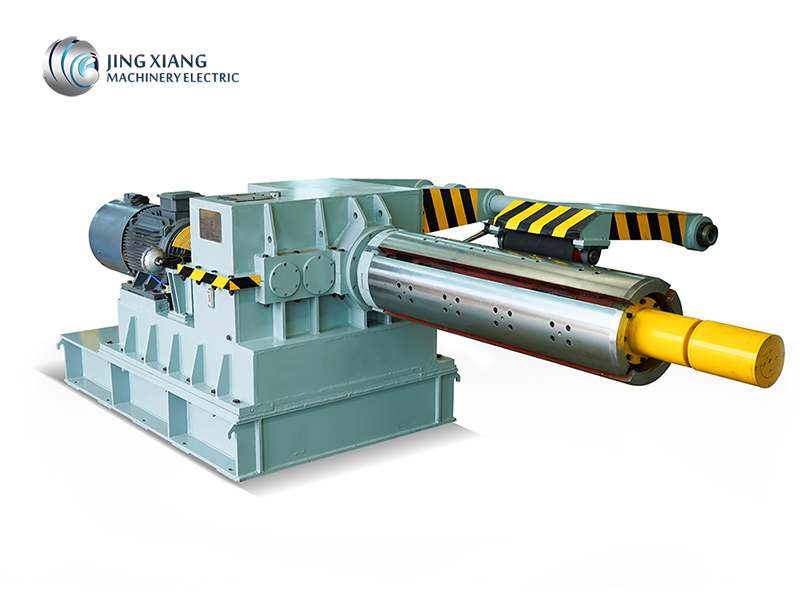

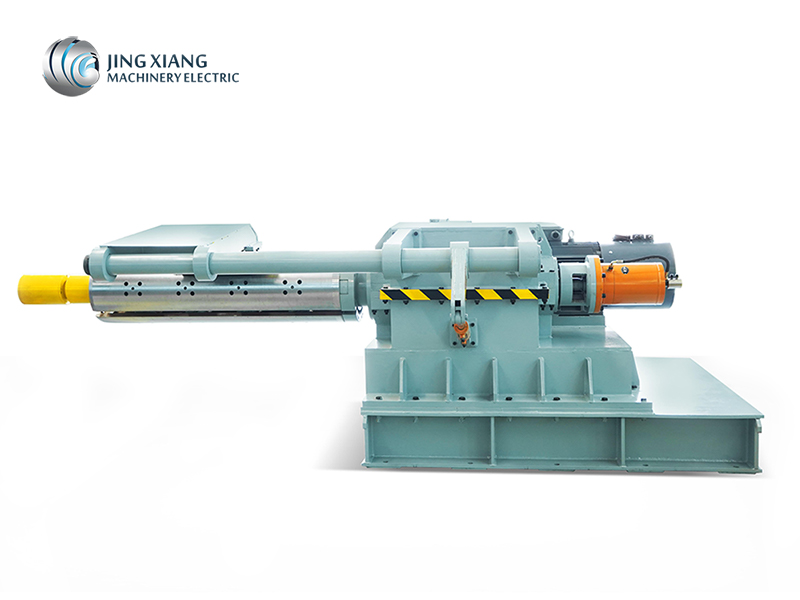

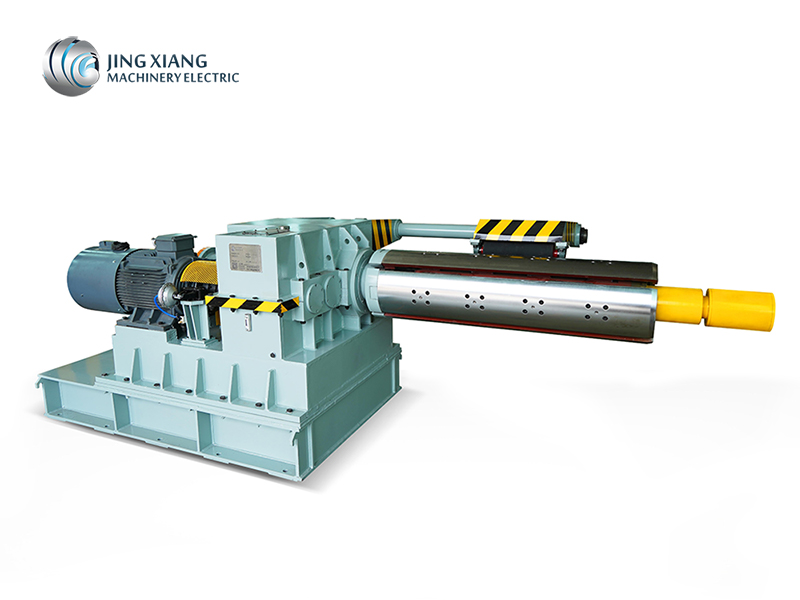

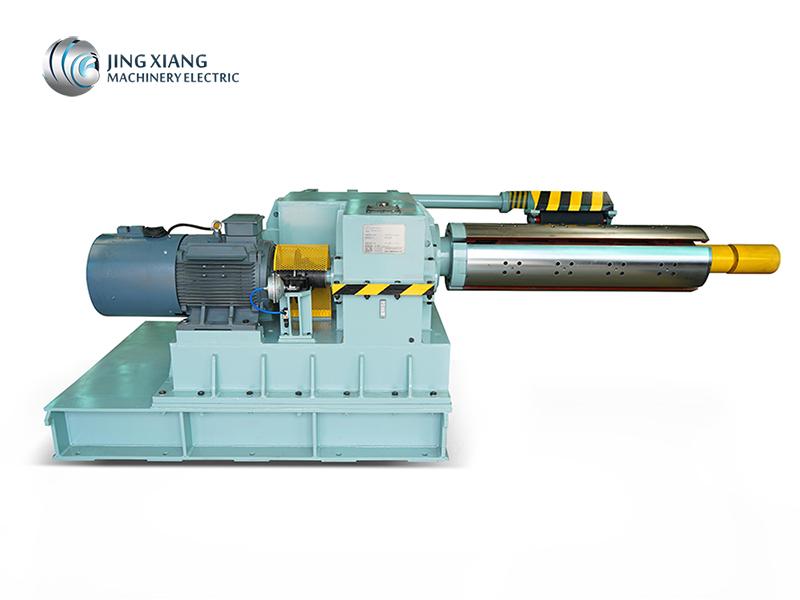

Hydraulic Uncoiler for Metal Strip Surface Treatment Line
Feature Highlights
Our hydraulic uncoiler feeds coils stably at the entry of metal strip production lines. A cantilever mandrel with variable-frequency AC motor drive maintains precise back tension, keeping strip flat and wrinkle-free. Thick steel plate gearbox base and four bronze-slide expandable valves with rotating hydraulic cylinder control lock coils up to 508/610mm bore.
Tool-free changeover, low vibration, and easy maintenance for daily production. As an EPC turnkey line manufacturer, Jingxiang integrates it into complete surface treatment systems. It handles steel, aluminum, and stainless coils in stamping, slitting, coating lines.
Product Advantages
Product Specifications
| Feature | Description | Feature | Description |
| Outer diameter of steel roll | Maximum of Φ1500mm | Valve | Cast steel |
| Inner diameter of steel roll | Minimum of Φ508 | Main sliding block | Casting aluminum brass |
| Width of steel roll | 800-1250mm | Retracting size | Diameter of 450mm |
| Maximum steel roll weight | 15-25t | Expanding size | Diameter of 508mm |
| Frame and base | Welding low carbon steel | Rubber sleeve | Thickness of 51mm |
| Mandrel and pull rod | 40Cr | Expanding and retracting actuator | One rotating hydraulic cylinder |
Customized Service
Product Application
As one of the professional hydraulic uncoiler manufacturers, Jingxiang's uncoiler is widely applied in the construction industry (steel structures, roofing and wall panels), home appliances (outer casing stamping), the automotive industry (auto parts stamping), steel service centers (slitting and cut to length), and photovoltaic bracket manufacturing.
• Construction Industry • Home Appliance Industry • Automotive Industry
• Steel Service Center • Photovoltaic Bracket
